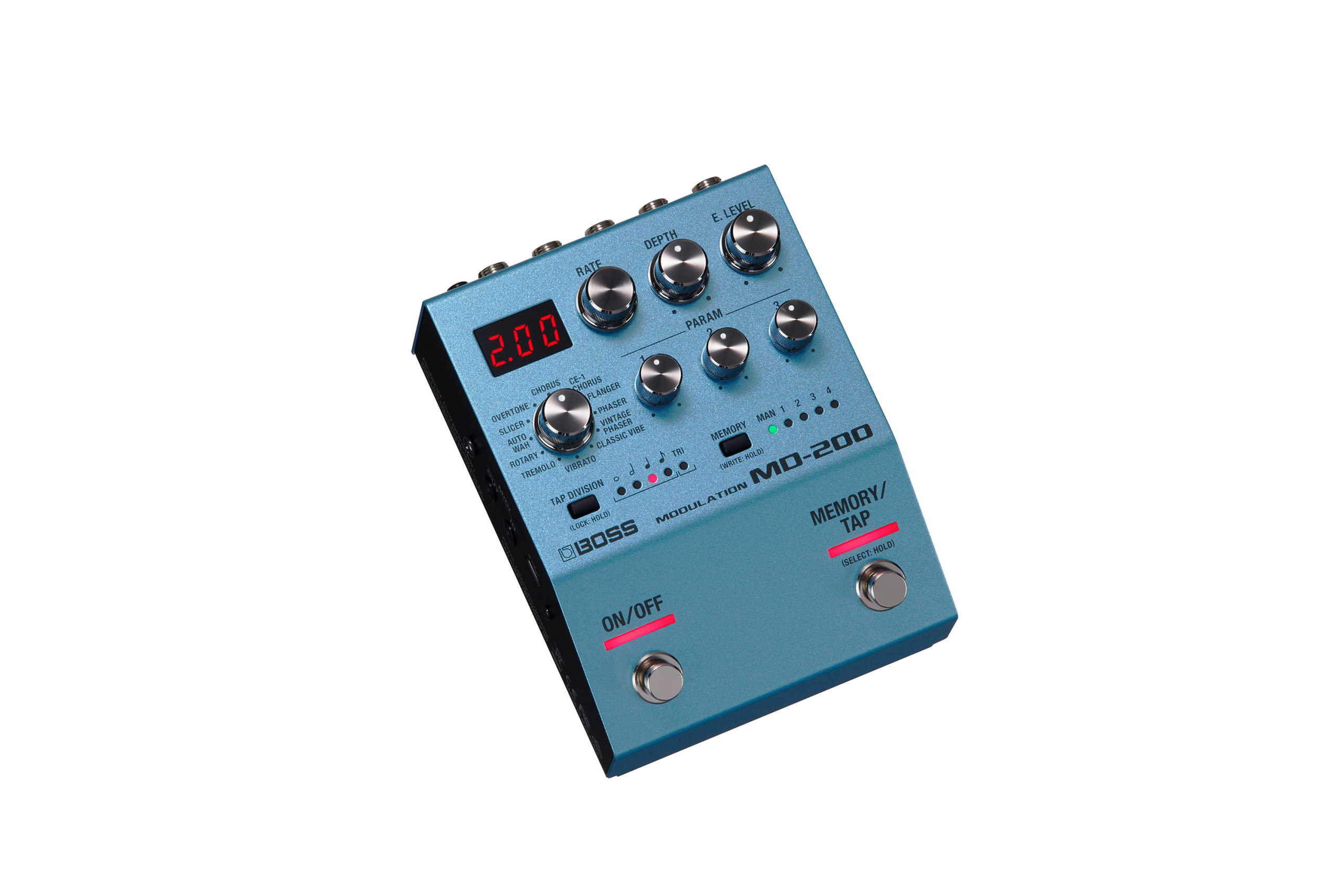

Boss MD-200 Modulation

Sampling Frequency:

• 96 kHz

AD/DA Conversion:

• 32 bits

Processing:

• 32-bit floating point

Modes:

• 12 modes CHORUS
• CE-1 CHORUS
• FLANGER
• PHASER
• VINTAGE PHASER
• CLASSIC VIBE
• VIBRATO
• TREMOLO
• ROTARY
• AUTO WAH
• SLICER
• OVERTONE

Memory:

• 4 + Manual

Nominal Input Level:

• INPUT A/MONO, B: -10 dBu

Maximum Input Level:

• INPUT A/MONO, B: +7 dBu

Input Impedance:

• INPUT A/MONO, B: 2 M ohm

Nominal Output Level:

• OUTPUT A/MONO, B: -10 dBu

Maximum Output Level:

• OUTPUT A/MONO, B: +7 dBu

Output Impedance:

• OUTPUT A/MONO, B: 1 k ohms

Recommended Load Impedance:

• OUTPUT A/MONO, B: 10 k ohms or greater

Bypass:

• Buffered bypass

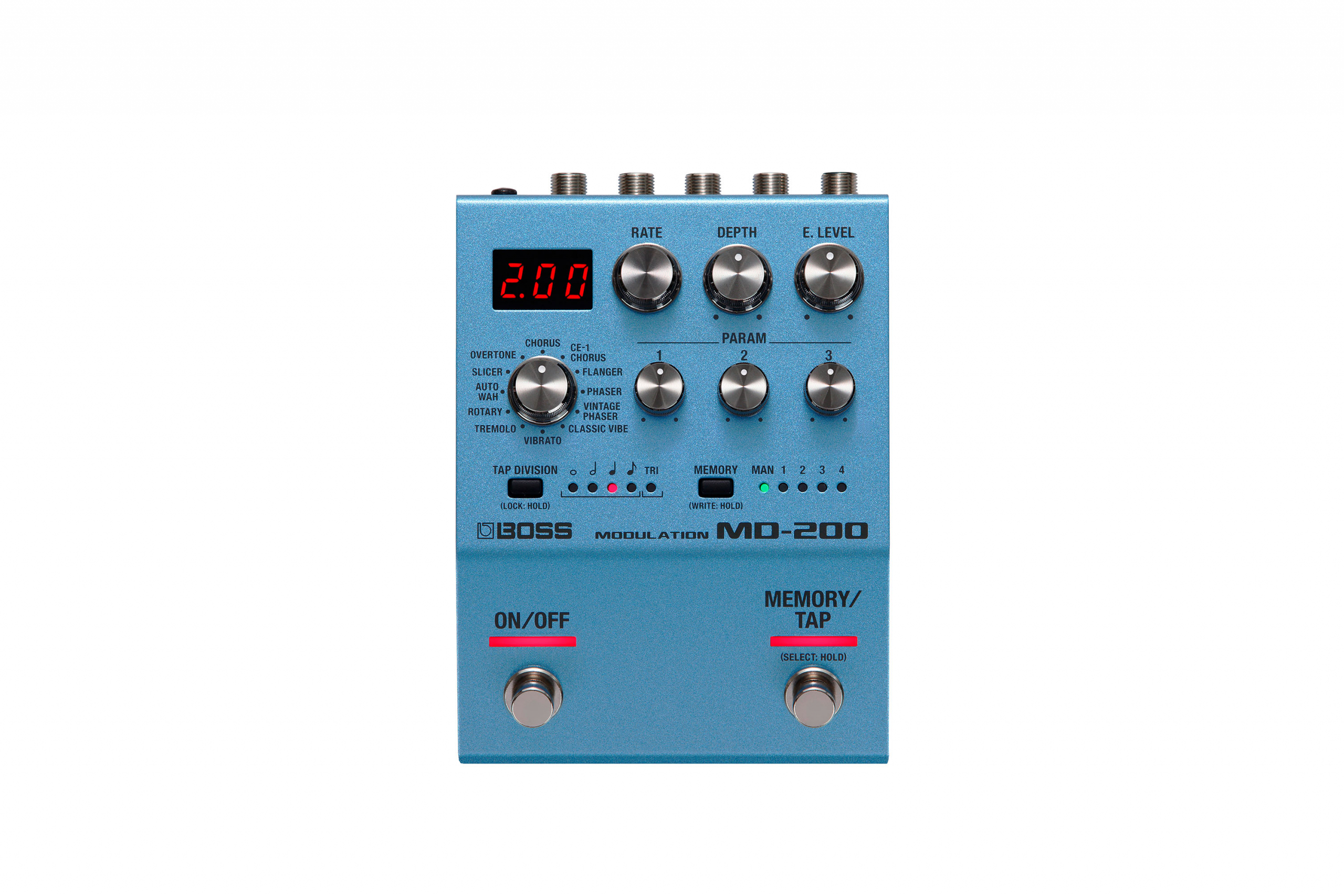

Controls:

• ON/OFF switch,
• MEMORY/TAP switch
• MODE knob
• RATE knob
• DEPTH knob
• E. LEVEL knob
• PARAM 1 knob
• PARAM 2 knob
• PARAM 3 knob
• TAP DIVISION button
• MEMORY button



Display:

• 7 segments
• 3 characters (LED)

Indicator:

• TAP DIVISION indicator
• MEMORY (MAN, 1–4) indicators

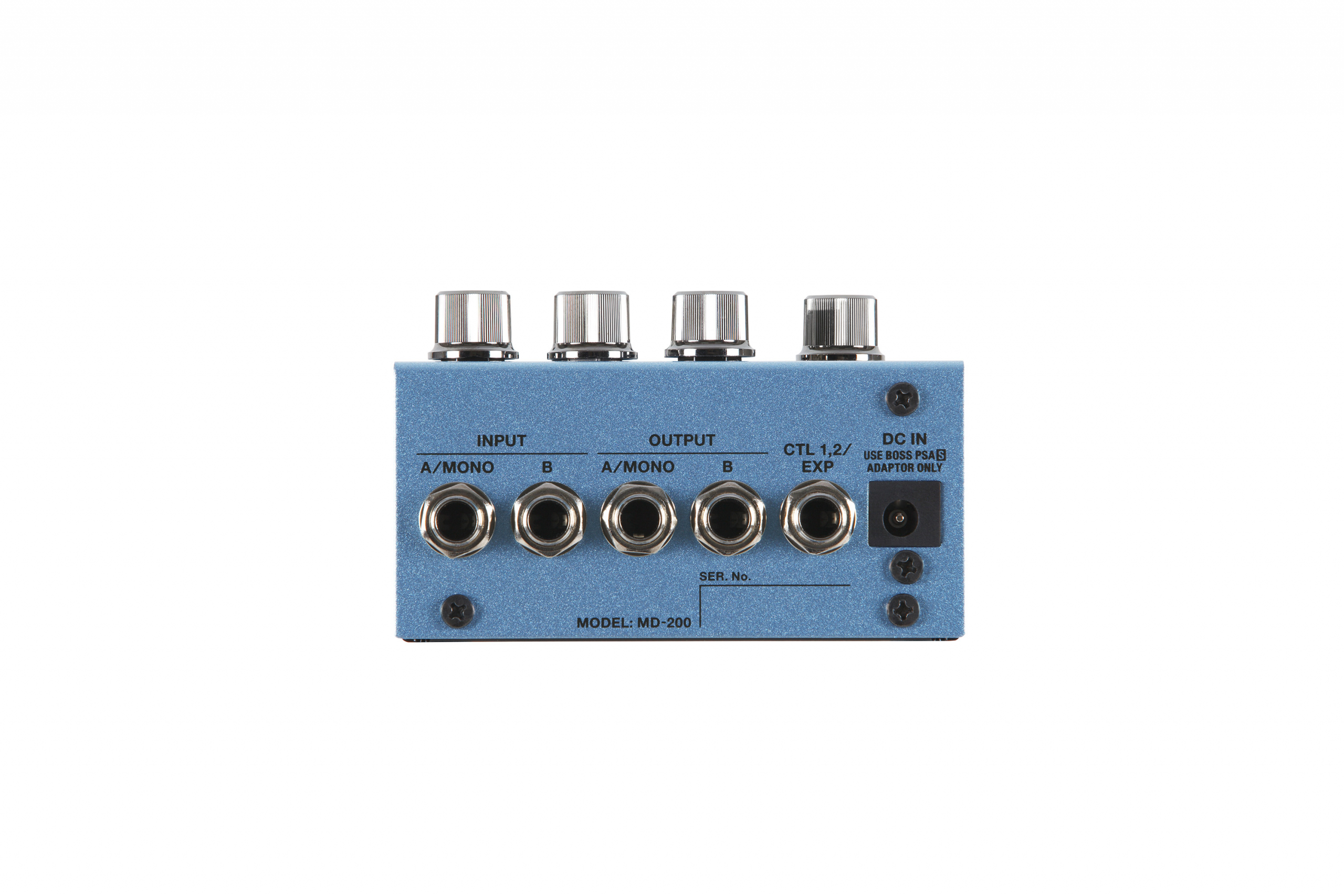

Connectors:

• INPUT (A/MONO, B) jacks
• OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
• CTL 1, 2/EXP jack: 1/4-inch TRS phone type

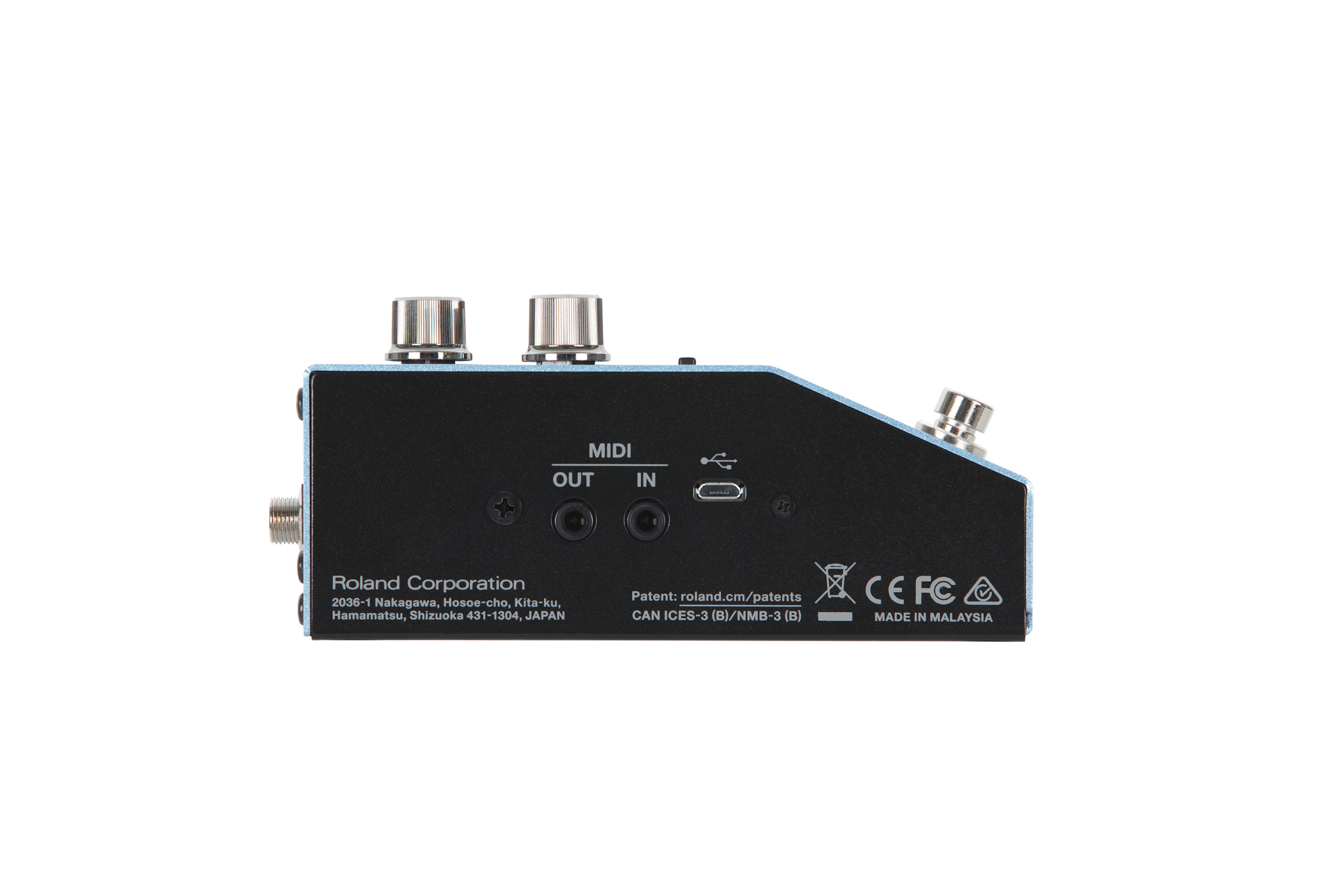

• MIDI (IN, OUT) jacks: Stereo miniature phone type
• DC IN jack
• USB port: USB micro B-type (program update only)

Power Supply:

• Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)

Current Draw:

• 225 mA

Expected Battery Life Under Continuous Use:

• Alkaline: Approx. 4 Hours
  * These figures will vary depending on the actual conditions of use.

Accessories:

• Owner’s Manual Leaflet „USING THE UNIT SAFELY“
• Alkaline battery (AA, LR6) x 3
• Rubber foot x 4

Options (sold separately):

• AC adaptor: PSA-S series
• Footswitch: FS-5U
• Dual footswitch: FS-6, FS-7
• Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
• TRS/MIDI cable: BMIDI-5-35

SIZE AND WEIGHT:

• Width: 101 mm 4 inches
• Depth: 138 mm 5-7/16 inches
• Height: 63 mm 2-1/2 inches
• Height (including rubber foot): 65 mm
• 2-9/16 inches
• Weight: 610 g1 lb 6 oz
• Weight (including battery): 680 g 1 lb 8 oz
